HANDY VAQ – ECG Suction System

The handy vaq is one of the ECG suction systems designed to deliver excellent signal quality with simple, mobile, and ergonomic operation. Its silent and powerful pump ensures optimal adhesion of the electrodes, even on difficult skin types, guaranteeing accurate ECG recordings in all circumstances. Lightweight, robust, and easy to clean, it adapts perfectly to medical practices, cardiology centers, and hospital environments.

Main Features

• Ultra-compact format: fits in the hand, ideal for fixed or mobile use.

• Silent and efficient pump integrated into the housing.

• 5 adjustable suction levels to suit each patient.

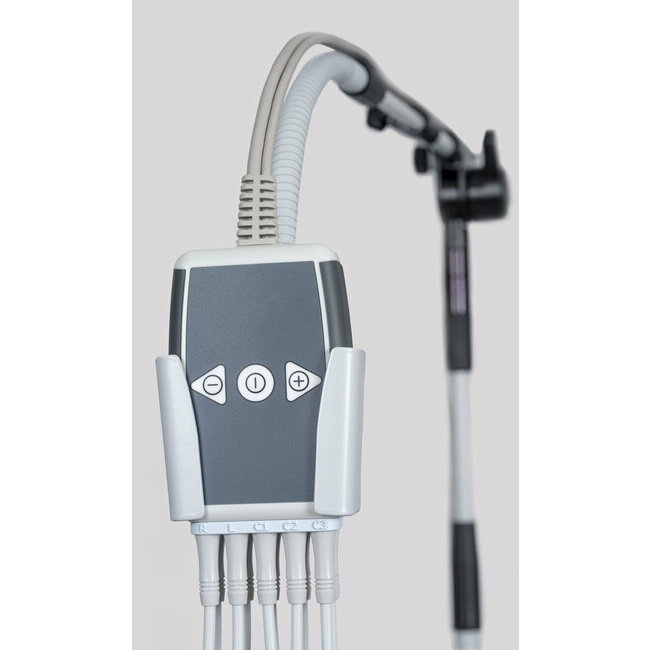

• Intuitive operation with only 3 buttons and LED display.

• Blow function to facilitate cleaning and remove moisture.

• Ag/AgCl electrodes with high-quality silicone suction cups.

• Easy maintenance thanks to robust and individually replaceable components.

Technical Specifications

• Module dimensions: 78 × 117 × 27 mm (without tubes)

• Weight: 950 g with cable bundle

• Maximum negative pressure: 250 mbars

• Flow rate: 2.6 l/min

• Suction levels: 5 steps (100 to 250 mbars)

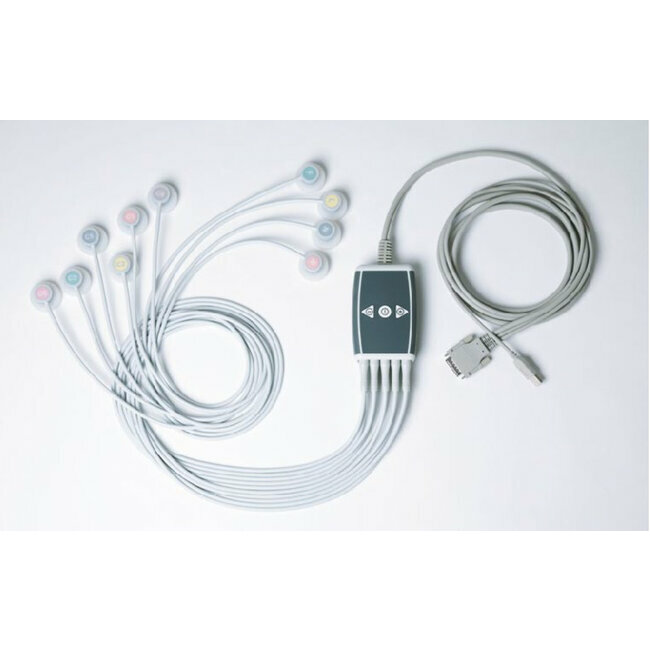

• ECG connection: 15-pin D-Sub, 2-m cable

• Patient leads:

  • 6 thoracic cables 1.10 m

  • 4 limb cables 1.30 m

• Electrodes: Ag/AgCl, silicone suction cups

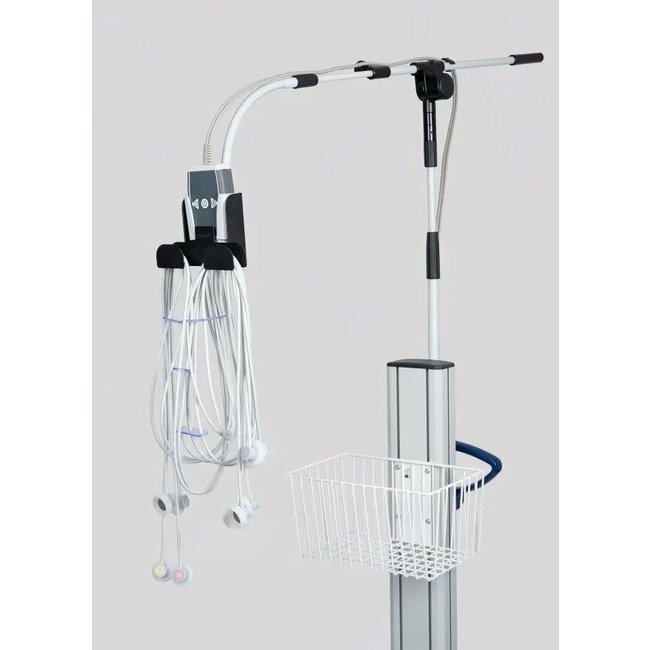

Optional: telescopic arm with table-mount support.

Thanks to its compact format, high suction efficiency, and exceptional signal quality, the handy vaq stands out as a complete, reliable, and easy-to-use solution for resting ECG recordings. Its simplified maintenance, robust accessories, and excellent price/performance ratio make it an ideal choice for professionals seeking performance, hygiene, and ergonomics.
