Description

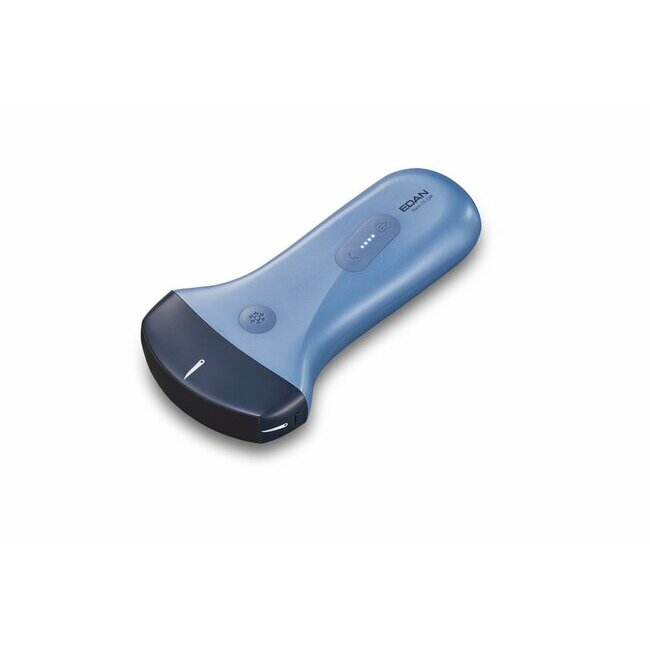

Edan Nano Portable Color Ultrasound
The Edan Nano Portable Color Ultrasound, available in Convex (EDA531) and Linear (EDA532) versions, is a cutting-edge device combining performance, mobility, and advanced connectivity. Designed to meet the demands of healthcare professionals, it comes with an Android tablet and a carrying case, allowing for quick and accurate exams in hospital settings, medical offices, or during mobile interventions.

Convex Model (EDA531): Optimized for abdominal, obstetric, gynecological, thoracic, and urologicalexaminations
Linear Model (EDA532): Ideal for vascular, musculoskeletal, pediatric, and small organ applications

Main Features

✔ Advanced Technology: SynSight Zone Sonography and Tissue Adaptive Imaging (TAI) for exceptional image quality
✔ Professional Imaging Modes: B, C, M, PW with automatic optimization
✔ Ultra-portable Design: Compact size (16.1 x 6.4 x 2.9 cm) and lightweight (215 g - 240 g)
✔ Intuitive Connectivity: Wireless or wired connection to the included Android tablet via the Nano app
✔ Ergonomics and Customization: Adjustable interface with voice assistant and configurable presets
✔ Extended Battery Life: 5 hours of use, fast recharge in 2.5 hours
✔ Easy to Disinfect: IP67 rating for water and dust resistance

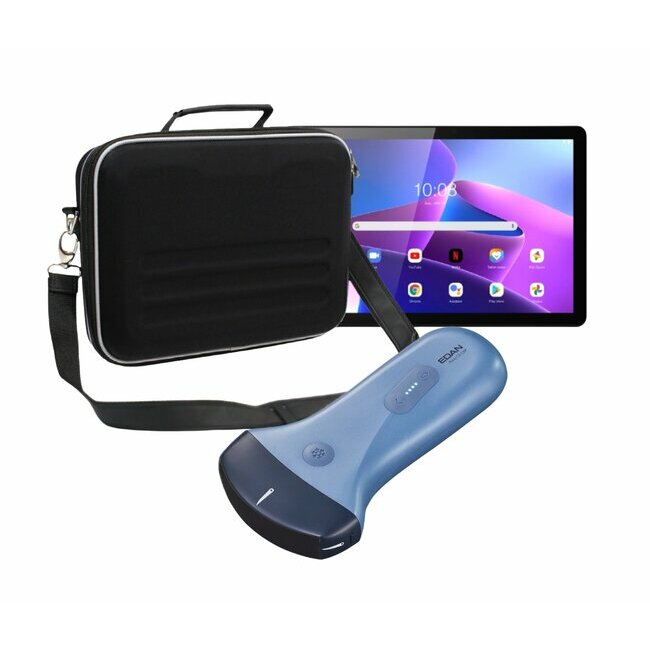

✔ Included Accessories: Android tablet and carrying case for optimal mobility

Differences Between the Two Models:

Edan Nano Convex (EDA531)

• Convex probe (64 channels, 128 elements)

• Frequency: 2 - 5 MHz

• Applications: Abdomen, gynecology, obstetrics, urology, thorax, heart

Edan Nano Linear (EDA532)

• Linear probe (64 channels, 192 elements)

• Frequency: 4 - 12 MHz

• Applications: Vascular, musculoskeletal, pediatrics, small organs

Technical Specifications

• Dimensions: 16.1 cm (L) x 6.4 cm (W) x 2.9 cm (H)

• Weight:

  • Convex model: 240 g

  • Linear model: 215 g

• Frequency Range:

  • Convex: 2 - 5 MHz

  • Linear: 4 - 12 MHz

• Imaging Modes: B, C, M, PW

• Battery Life: 5 hours (quick charge in 2.5 hours)

• Connectivity: Wireless / wired via included Android tablet

• Water Resistance: IP67

• Operating Temperature: 0 - 40°C

• Certifications: CE 2017/745, Notified Body 0123

• Medical Class: IIa (regulated medical device)

• Warranty: 3 years

The Edan Nano Portable Color Ultrasound is an essential tool for healthcare professionals requiring fast, accurate, and mobile diagnostics. With its two versions tailored to different clinical needs and its integrated Android tablet, it represents the ideal solution for real-time exams and optimal medical follow-up.
