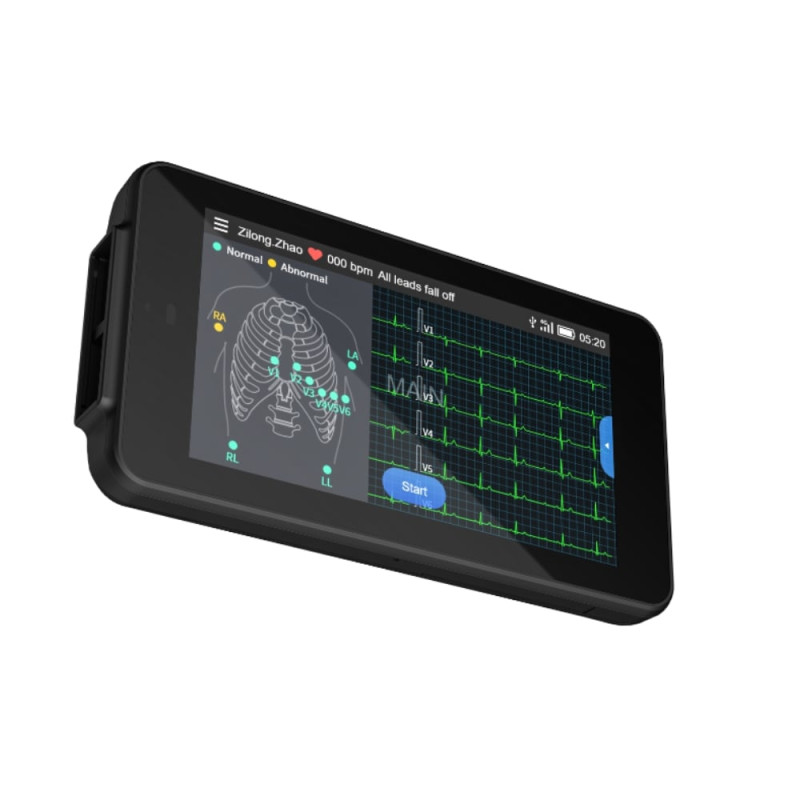

One Medical Cardio One Mini – Pocket ECG Device

The Cardio One Mini from One Medical is an innovative pocket ECG, designed for reliable and convenient cardiac monitoring. Featuring a 4.46-inch color touchscreen, it provides clear visualization and intuitive operation. Compact, lightweight, and easy to carry, it is ideal for healthcare professionals on the go or for bedside patient use. Powered by a rechargeable lithium battery or external power supply, it offers over 24 hours of continuous operation.

Key Features

• Optimal Visualization: 4.46-inch touchscreen (480 x 854 px) for clear and precise display.

• Portability: Compact design and lightweight at 250 g, perfect for mobile use.

• High Performance: Glasgow algorithm for accurate automatic interpretation.

• Advanced Modes: Pre-sampling, real-time, periodic, R-R mode, and triggered sampling.

• Interference Reduction: ADS and EMG systems for precise measurements.

• Smart Connectivity: Data transfer via Wi-Fi and report printing through desktop printers.

• Customizable: Patient information management and quick ECG report sharing via email.

• Exceptional Battery Life: Over 24 hours of continuous operation.

• Compliance: CE 93/42/EEC certified with IPX0 protection.

Technical Specifications

• Measurement Range: 30–300 bpm

• Dimensions: 13.4 x 7.4 x 1.7 cm

• Weight: 250 g

• Power Supply: Rechargeable lithium battery or external DC power

• Sampling Rate: 2000 samples/second

• Includes: 1 ten-lead snap-on patient cable, two packs of 10 single-use electrodes, 1 USB-C cable, and user manual
