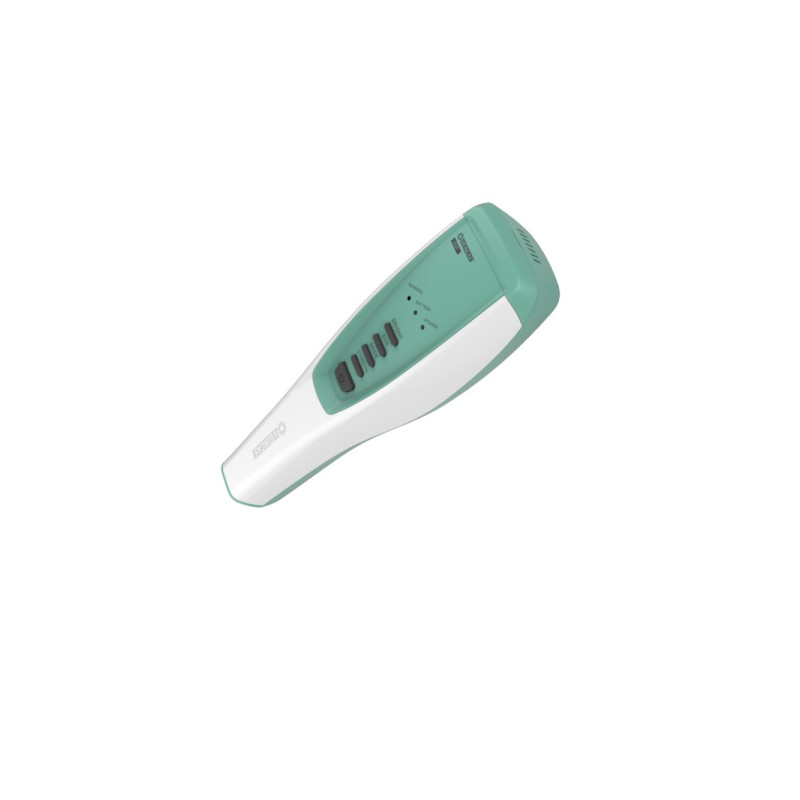

The VEINCAS V800F is a portable infrared vein finder, designed to enable quick and accurate vein visualization for medical procedures such as venipuncture, infusions, or blood draws. With its high-performance sensor, it projects veins in real time onto the patient’s skin with outstanding precision. Lightweight and compact, it can be used by hand or with a table or rolling stand.

Optional: table stand, rolling stand

Main Features
• Non-invasive infrared technology for clear vein imaging
• HD camera and DLP projector for sharp display
• Real-time image projection with no latency
• Integrated paediatric and inverse modes
• Handheld or mountable use
• Long-lasting rechargeable battery (up to 4 h)
• USB port for external storage via flash drive
• Silent operation, no fan
• 2-year warranty
• CE medical certification

Technical Specifications
• Weight: 450 g
• Dimensions: 240 × 60 × 60 mm
• Projection area: 20 × 15 cm
• Resolution: 856 × 480 px
• Detection depth: up to 10 mm
• Positioning accuracy: ±0.25 mm
• Optimal working height: 15–25 cm
• Battery: 4400 mAh lithium (4 h)
• Charging time: approx. 3 h
• USB input: external storage supported

The VEINCAS V800F is the ideal solution for improving vascular access accuracy in clinics, hospitals, and mobile care environments.
