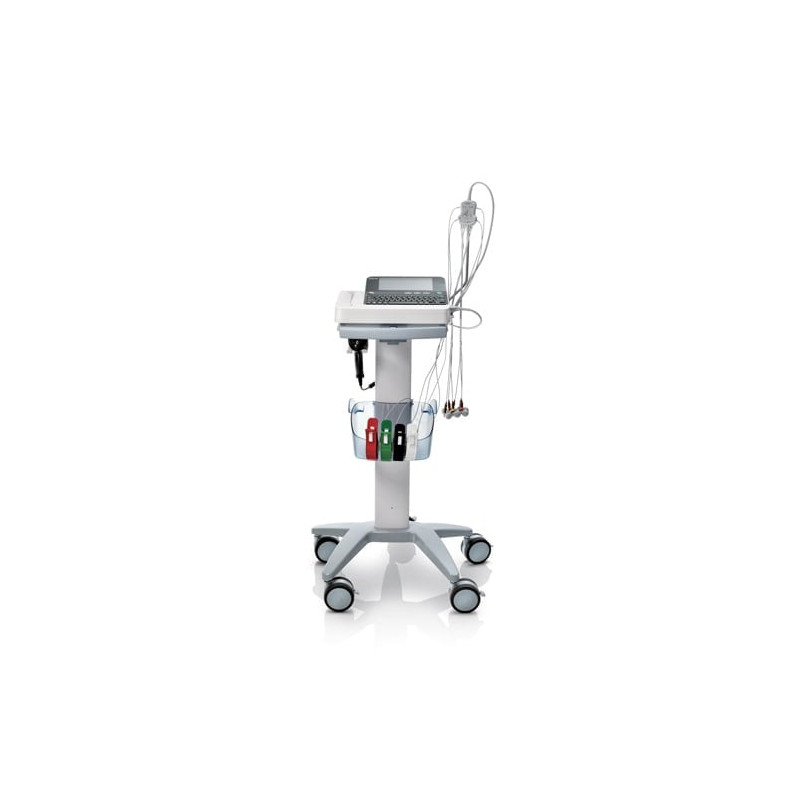

BeneHeart R12 – Compact and high-performance 12-lead electrocardiograph

The BeneHeart R12 is a 12-lead electrocardiograph designed to deliver fast, accurate, and reliable diagnosis for both adults and children. Compact and lightweight, it combines an ultra-fast startup in 7 seconds, a high-resolution 8-inch color display, a built-in thermal printer, and advanced connectivity solutions (USB, Ethernet) to simplify clinical workflow.

Key Features

• Fast acquisition: startup in 7 seconds and pre-acquisition in 10 s

• Glasgow analysis internationally recognized for adults and children

• 8’’ high-resolution color display, optional touchscreen

• Internal memory: stores up to 800 ECGs + export via USB stick

• Connectivity: USB, wired network, integration with ECG/PACS systems

• Integrated thermal printer + option for external desktop printer

• Long-lasting battery: up to 3h30 of operation or 400 pages/prints

• Automatic pacemaker detection and real-time critical alerts

• Anatomical cable design to reduce electrode tangling

• Full keyboard and shortcut keys for fast data entry

Technical Specifications

• Leads: 12 standard, adult/child criteria from birth

• Dimensions: approx. 370 × 390 × 101 mm

• Weight: 4.9 kg (one of the lightest in its category)

• Power supply: rechargeable lithium-ion battery

• Autonomy: 3h30 continuous operation or 400 recordings/pages

• Storage: 800 ECGs in internal memory + PDF/XML export via USB

• Interface: USB, LAN

• Cart: 4 wheels, storage basket, cable holder

• Included accessories: rolling cart, patient cable, electrodes, AC adapter, battery

Combining clinical precision, ergonomic design, and advanced connectivity, the BeneHeart R12 is the ideal tool for healthcare facilities or private practitioners looking for a reliable, compact, and cost-effective ECG. Its Glasgow analysis technology and smart design make it indispensable both in clinics and hospitals, effectively meeting the daily needs of cardiology diagnostics.
